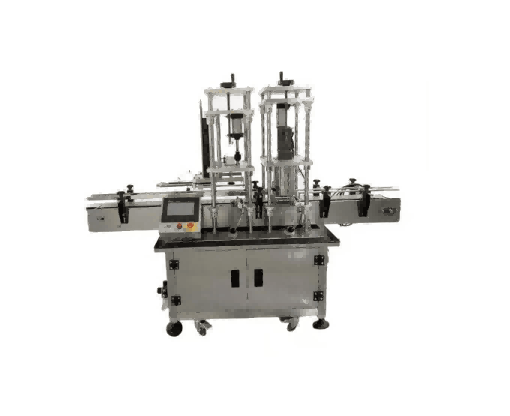

Linear Pumping Vacuum Bottle Capping Machine
Introducing the Linear Pumping Vacuum Bottle Capping Machine – an integrated industrial solution engineered for automated vacuum sealing of glass containers. Combining servo-controlled precision with straight-line capping technology, this advanced system delivers high-efficiency, labor-saving spin capping while guaranteeing product shelf-life extension, making it the ultimate choice for food, beverage, and pharmaceutical packaging lines.
Description:
Automated Bottle Capping Process
The machine revolutionizes container sealing through its integrated linear workflow:
Auto Cover Feeding: Storage tank system enables hands-free cap delivery and pre-spin positioning, eliminating manual handling.
Vacuum Spin Sealing: Servo-driven rotary capping with adjustable torque control ensures airtight vacuum integrity.
Precision Engineering
Built for industrial-grade reliability:
Servo-Controlled Torque: Programmable vacuum capping force (0.5-15Nm adjustable) prevents under/over-tightening.
Linear Pumping System: Straight-line cap placement guarantees perfect alignment for glass bottles of all sizes.
Intelligent Quality Assurance
Smart features for zero-defect production:
International Electronic Components: Siemens/Omron PLC systems ensure equipment stability and 24/7 operation.
Leak-Proof Verification: Automated vacuum testing validates seal integrity before product release.
Specs
| Turns cover head： | 1 |
| Main Material: | 304 stainless steel |
| Capping speed: | UP to 15cycles per minute |
| Bottle mouth diameter: | 45 - 100mm |
| Bottle mouth height： | 50-200mm |
| Rotary cover torsion： | 3-10Nm adjustable |
| Automatic vacuum： | Negative pressure-0.2-0.4pa |
| Power Supply: | 110VAC or 220/240 VAC / Single Phase / 20 Amp |
| Power: | 1900W |
| Dimensions: | L2000mm*W 625mm* H 1600mm |
