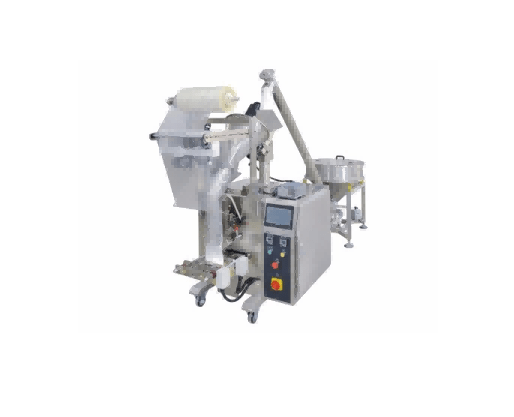

Powder Automatic Film Roll Packaging Machine
The Powder Automatic Film Roll Packaging Machine is a high-performance, fully automated solution designed for precision and efficiency in powder packaging applications. Engineered for use in the food, pharmaceutical, cosmetic, and chemical industries, this machine provides a comprehensive packaging process that ensures accuracy, productivity, and ease of operation.
Product video:
Description:
High-Precision Mechanical Design
The machine features a high-precision structural design that ensures stable performance, long service life, and convenient maintenance, significantly reducing downtime and enhancing operational reliability.
User-Friendly PLC Touchscreen Interface
Integrated with a PLC-controlled touchscreen and stepper motor system, the machine allows precise and intuitive adjustment of bag length settings, simplifying operation for users of all skill levels.
Variable Frequency Speed Control
Equipped with variable frequency drive technology, the machine enables smooth, rapid, and energy-efficient speed adjustments, optimizing production efficiency while minimizing film waste.
Fully Automated Packaging Process
The system performs multiple packaging functions—including filling, weighing, bag forming, sealing, and date printing—in a single continuous process, ensuring a seamless and efficient workflow.
Applications
Why Choose Our Powder Automatic Film Roll Packaging Machine?
Precision Engineering
The high-precision mechanical structure guarantees stable operation and ease of maintenance, ensuring long-term reliability.
Intuitive Operation
The combination of a PLC touchscreen and stepper motor control enables accurate and user-friendly bag length configuration.
Efficiency and Resource Optimization
Variable frequency speed control enhances processing speed while reducing material waste and operational costs.
Comprehensive Automation
Capable of performing multiple packaging tasks in one integrated process, minimizing manual intervention and improving overall productivity.
Transform your powder packaging line with the Powder Automatic Film Roll Packaging Machine. Contact us today to discover how this advanced equipment can enhance your production capabilities and deliver consistently superior packaging results.
Specs
| Version | SN-320 | SN-380 | SN-60 |
|---|---|---|---|
| Bag type | Back sealing | Back sealing | Three-Side Seal Bag Four-Side Seal Pouch Stick Pack |
| Max-membrane width： | Max.320mm | Max.380mm | Max.320mm |
| Bag length: | 50-200mm | 60-280mm | 30-120mm |
| Bag width: | 50-150mm | 60-180mm | 15-120mm |
| Weighing range： | 30~500g(depending on the product) | 50~800g(depending on the product) | 5~100g |
| Outer membrane diameter： | 320mm | 320mm | 320mm |
| Packaging materials: | OPP/CPP,OPP/PE,PET/PE | OPP/CPP,OPP/PE,PET/PE | OPP/CPP,OPP/PE,PET/PE |
| Packaging speed: | 35-65bags/min | 15-40basg/min | 5-60 bags/min |
| Power: | 2.2KW | 2.5KW | 880W |
| Size（mm）: | 970*680*1950 | 1000*800*2150 | 970*680*1950mm |
| Weight: | 300Kg | 380Kg | 300Kg |
